UNED Research Journal (e-ISSN 1659-441X), Vol. 13(1): e3170, June, 2021



Growth, photosynthesis and oxidative stress in Prosopis nigra (Fabaceae) under simulated glyphosate drift


Diego Ariel Meloni1https://libapps-eu.s3.amazonaws.com/accounts/86186/images/iconoorcid_16x16.gif & Graciela Inés Bolzón2https://libapps-eu.s3.amazonaws.com/accounts/86186/images/iconoorcid_16x16.gif


1.        Facultad de Agronomía y Agroindustrias. Universidad Nacional de Santiago del Estero, Av. Belgrano (S) 1912, Santiago del Estero, Argentina; dmeloniunse@gmail.com

2.        Universidade Federal do Paraná, Curitiba, Brazil; gbminiz@ufpr.br


Received 21-VIII-2020 – Corrected 09-XI-2020 – Accepted 11-XI-2020

DOI: https://doi.org/10.22458/urj.v13i1.3170


ABSTRACT. Introduction: The tree Prosopis nigra is native to the Western Chaco phytogeographic region, affected by the application of glyphosate in the surrounding crops. Objective: To determine the impact of simulated glyphosate drift on growth, photosynthesis and oxidative stress in P. nigra seedlings. Methods: We simulated drift in seedlings at doses of 0, 200, 400 and 800 g a.e. ha-1 of glyphosate. We also measured gas exchange and modulated fluorescence emission of chlorophyll a. Results: Glyphosate reduced biomass, photosynthetic rate, and stomatal conductance. Doses of 400 and 800 g a.e. ha-1 glyphosate produced photoinhibition. The electron transport rate was sensitive to glyphosate, and it decreased at all doses of the herbicide. Glyphosate generated oxidative stress, and produced damage to membranes, because of the accumulation of H2O2 and O2.. Conclusions: Glyphosate reduces growth and photosynthesis in these seedlings. The inhibition of photosynthesis is due to stomatal closure, and alterations in the photochemical stage, associated with oxidative stress.





Keywords: Chaco plants, herbicides, photosynthesis, antioxidants, ecophysiology.


RESUMEN. “Crecimiento, fotosíntesis y estrés oxidativo del árbol Prosopis nigra (Fabaceae) en deriva simulada de glifosato”. Introducción: el algarrobo negro (P. nigra) es un árbol nativo de la región fitogeográfica del Chaco Occidental, afectada por la aplicación de glifosato en los cultivos circundantes. Objetivo: Determinar el impacto de la deriva simulada del glifosato, sobre el crecimiento, la fotosíntesis y el estrés oxidativo en plantines de P. nigra. Métodos: Se simuló la deriva en plantines, con dosis de 0, 200, 400 y 800 g a.e. ha-1 de glifosato. También medimos intercambio gaseoso y emisión de fluorescencia modulada de la clorofila a. Resultados: El glifosato redujo la biomasa, la tasa fotosintética, y la conductancia estomática. Las dosis de 400 y 800 g a.e. ha-1 glifosato produjeron fotoinhibición. La tasa de transporte de electrones fue muy sensible al glifosato, y disminuyó en todas las dosis del herbicida. El glifosato generó estrés oxidativo, y produjo daño en membranas, debido a la acumulación de H2O2 y O2.-. Conclusiones: El glifosato reduce el crecimiento y la fotosíntesis enestos plantines. La inhibición de la fotosíntesis se debe al cierre estomático, y alteraciones en la etapa fotoquímica, asociadas al estrés oxidativo.


Palabras clave: algarrobo negro, herbicidas, fotosíntesis, antioxidantes, ecofisiología.


The “algarrobo negro” (Prosopis nigra) is a species of forest importance, native to the phytogeographic region of Western Chaco. The wood has excellent technological characteristics and is used in the manufacture of fine furniture. The fruits are fit for human consumption, and they are also used as fodder (Giménez & Moglia, 2003). It inhabits arid and semiarid regions, in ecosystems that are very sensitive to anthropic intervention. These areas have been subjected to intense deforestation to introduce agricultural crops to which high doses of glyphosate are usually applied (Felker, 2009). The agrochemicals applied to agricultural crops are carried by the wind towards the native bush, a phenomenon known as drift (Meloni et al., 2019). The impact of glyphosate drift on the growth and physiology of P. nigra is not known.

Glyphosate (N-phosphonomethyl glycine) is a broad-spectrum systemic herbicide. It acts inhibiting the enzyme 5-enolpyruvylshikimate-3-phosphate synthase, responsible for the synthesis of chorismate. Such compound is an intermediary in the aromatic amino acid synthesis pathway (Alcántara de la Cruz, Barro, Domínguez-Valenzuela, & De Prado, 2016).

Although the mechanism of action of glyphosate is known, in some species it has produced damage without affecting the concentration of aromatic amino acids. This observation would indicate that glyphosate could interfere with other physiological processes (Serra et al., 2013). It has been demonstrated that glyphosate has a short half-life, rapidly transforming into aminomethylphosphonic acid (AMPA), which can compete with glycine in the synthesis of chlorophyll, and with other compounds that are essential in plant metabolism (Gomes et al., 2014). Thus, in some species glyphosate decreased the photosynthetic rate, although there are many discrepancies about the mechanism involved. In Lupinus albus, glyphosate decreased the assimilation of CO2 through Rubisco assimilation, without affecting stomatal conductance (De María et al., 2006). In glyphosate-sensitive soybean cultivars, this herbicide reduced the abundance of proteins associated to photosystem II, inhibiting the photochemical stage of photosynthesis (Vivancos et al., 2011). In Phaseolus vulgaris, glyphosate inhibited photosynthesis due to stomatal closure, whereas the photochemical stage was not altered (Olesen & Cedergreen, 2010).

The analysis of chlorophyll a fluorescence constitutes a sensitive and non-destructive method for the evaluation of the changes produced in the photochemical stage of photosynthesis. Recently, it has been used to assess damage to the photosynthetic apparatus under various environmental stress conditions, such as extreme temperatures (Zushi, Kajiwara, & Matsuzoe, 2012), drought (Gomes et al., 2012), salinity (Meloni, Silva, Ledesma, & Bolzón, 2017) and herbicides (Sousa, Farías, Shock, & Bacarin, 2014). The detection of glyphosate-sensitive fluorescence variables can be an important tool for the early detection of damage in forest species.

Under stress conditions, the energy absorbed by photosynthetic pigments that is not used to produce ATP and NADPH usually leads to the formation of reactive oxygen species (ROS; Sousa et al., 2014). These ROS, such as hydrogen peroxide (H2O2) and the superoxide radical (O2.-), can cause significant damage at cellular and molecular levels. Among these damages, lipid peroxidation, alterations in cell membranes and degradation of proteins and chlorophyll stand out (Paiva et al., 2019).

The aim of this work was to quantify the effect of glyphosate drift on the growth, photosynthesis and oxidative stress in P. nigra seedlings.




Plant materials: All the experiments were conducted under greenhouse conditions in the experimental field of the Universidad Nacional de Santiago del Estero (27°45'S, 64°18'W), Argentina. One-year-old P. nigra seedlings were grown in 10 L pots containing a substrate consisting of loamy soil and mulch (in 1:1 ratio). Pots were watered daily to maintain soil moisture close to field capacity, replacing water losses by evapotranspiration.

Doses of 0, 200, 400 and 800 g a.e. ha-1 glyphosate produced by Monsanto Argentina under the trademark Roundup® Full II were applied. The herbicide was applied so that it did not reach the upper third of the seedlings (Tuffi Santos, Meira, Ferreira, Sant’Anna-Santos, & Ferreira, 2007). A backpack sprayer equipped with a handheld boom consisting of two flat fan nozzles TT110,02, spaced 0,5m apart, 250kPa pressure and water volume of 200Lha-1 was used. During the application, the air temperature was 22°C and the relative air humidity was 60%.

The greenhouse presented the following environmental conditions: minimum temperature 12°C, maximum temperature 33°C, average relative air humidity 47% and maximum photosynthetic photon flux density (PPFD) 1400μmol m-2s-1.

Thirty days after the application of the herbicide, gas exchange and chlorophyll a fluorescence emission were measured. Samples were collected for the quantification of aerial biomass and chemical determinations


Gas Exchange and chlorophyll a fluorescence measurement: Gas exchange measurements were performed using an infrared gas analyzer in an open system (IRGA-LCpro+ System ADC, BioScientific Ltd.). A leaf chamber for Arabidopsis leaves was used, under conditions of artificially saturated light (1000μmol m-2s-1) and ambient CO2 concentration. The following variables were measured: net photosynthesis (A), stomatal conductance (gs) and intercellular CO2 concentration (Ci). Carboxylation efficiency (A/Ci) was calculated from these variables. Measurements were performed on the first fully expanded leaf, between 9:00 and 11:00a.m.

Chlorophyll a fluorescence emission measurement was made on the same leaves where gas exchange was measured, using a modulated Imaging- PAM fluorometer. Before the measurements were made, leaves were kept in darkness for 30min and covered with aluminum foil. The fluorescence emitted by the leaves was captured by a CCD camera. Minimum (F0) and maximum (Fm) fluorescence measurements were made; from these values, the maximum photosystem II (PSII) quantum yield, Fv/Fm = (Fm-F0)/Fm was calculated (Genty, Briantais, & Baker, 1989). Then, leaves were illuminated with saturating pulses of light to obtain the values of the effective quantum yield of PSII (YII) and the quenching of regulated (YNPQ) and non-regulated (YNO) non-photochemical dissipation. The YII was used to estimate the apparent electron transport rate, ETR=YII . PAR . Aleaf . 0.5 (Bilger, Schereiber, & Bock, 1995). In this equation, PAR is the flow of photons incident on the leaves, Aleaf is the fraction of incident light absorbed by the leaves and 0,5 is the fraction of excitation energy directed towards PSII (Laisk & Loreto, 1996).


Chemical determinations: The concentration of H2O2 was determined by the method proposed by Zhou, Diwu, Panchuk-Voloshina and Haugland (1997), measuring the oxidation of Amplex Red through the production of resophurin. The absorbance at 560nm was read, and the results were expressed in μmol g-1 FM.

The content of O2.- was quantified through the approach described by Elstner and Heupel (1976), measuring the formation of NO2-, from hydroxylamine in the presence of superoxide. Absorbance was read at 530nm, and the results were expressed in nmol min-1 g-1 FM.

The concentration of malondialdehyde (the product of lipid peroxidation) was quantified spectrophotometrically through the technique introduced by Cakmak and Horst (1991). An absorption coefficient of 155mM-1 cm-1 was used, and the results were expressed in nmol MDA g-1 FM.

Membrane damage was measured according to Cerqueira, Silviera, Carvalho, Cunha and Lima (2019). Leaflets were incubated 24h in test tubes containing 10mL of distilled water at 25°C. Subsequently, the electrical conductivity (L1) was measured. Then, the material was incubated at 95°C for 1h and cooled in an ice bath until it reached 25°C. The electrical conductivity (L2) was measured again. Membrane damage (MD) was calculated by the following equation: MD = (L1/L2) * 100. It was expressed in percentages.


Experimental design and statistical analysis: The experiments were arranged in a completely randomized design with six replicates. The experimental unit consists of a pot containing a P. nigra plant. Data were analyzed with ANOVA and Tukey test (P <0,05).




Algarrobo negro growth was significantly inhibited by all the doses of glyphosate. At the end of the assay, the seedlings treated with doses of 200, 400 and 800 g a.e. ha-1 glyphosate had an aerial biomass 23, 53 and 69% lower than the control (Fig. 1).

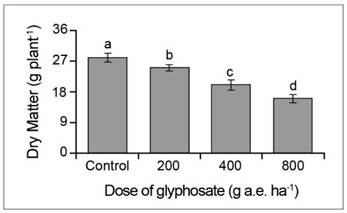

Fig. 1. Dry matter in P. nigra seedlings under simulated glyphosate drift. Values represent the means ± SD of six replicates; when labelled with different letters, they are significantly different (Tukey test; P < 0.05).


The photosynthetic rate also decreased as the doses tested increased (Fig. 2A). With the dose of 800 g a.e. ha-1 glyphosate, net photosynthesis was 69% lower than in the untreated control. A similar trend was observed in the stomatal conductance (Fig. 2B).

The internal CO2 concentration decreased 15 and 47% with respect to the control in the plants treated with 200 and 400g a.e. ha-1 glyphosate, respectively (Fig. 2C) No significant differences were observed between the Ci values of the seedlings treated with 400 and 800g a.e. ha-1 glyphosate. In agreement with the previous result, carboxylation efficiency was significantly reduced at the doses of 400 and 800 g a.e. ha-1 glyphosate, evidencing a non-stomatal inhibition of photosynthesis (Fig. 2D).

The variables of modulated fluorescence were very sensitive to the stress generated by glyphosate. YNPQ gradually decreased at all doses of the herbicide (Fig. 3A), whereas YNO followed an opposite trend (Fig. 3B). The electron transport rate was strongly reduced by glyphosate; at the highest dose, it registered a 92% decrease with respect to the control (Fig. 3C). In contrast, the Fv/Fm ratio only decreased in the plants treated with 400 and 800 g a.e. ha-1 glyphosate (Fig. 3D).

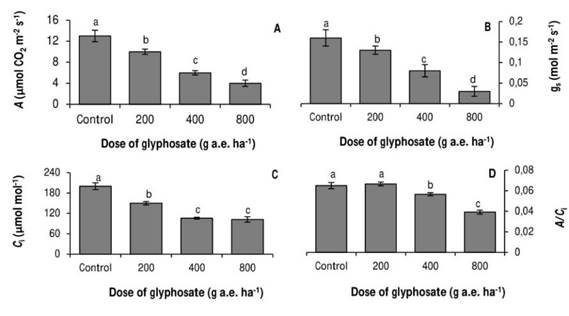

Fig. 2. Photosynthesis (A), stomatal conductance (B), internal CO2 concentration (C), and carboxylation efficiency (D), in P. nigra seedlings under simulated glyphosate drift. Values represent the means ± SD of six replicates; when labelled with different letters, they are significantly different (Tukey test; P < 0.05).

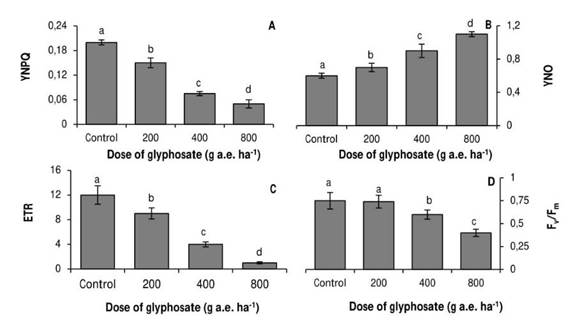

Fig. 3. Quenching of regulated non-photochemical dissipation (A), quenching of non-regulated non-photochemical dissipation (B), apparent electron transport rate (C) and maximum photosystem II quantum yield (D) in P. nigra seedlings under simulated glyphosate drift. Values represent the means ± SD of six replicates; when labelled with different letters, they are significantly different (Tukey test; P < 0.05).


Doses of 200 and 400g a.e. ha-1 glyphosate incremented the production of ROS, increasing the concentrations of H2O2 and O2.- (Table 1). Consequently, oxidative stress was produced, which was evidenced by the accumulation of malondialdehyde and the damage to cell membranes.



Membrane damage, lipid peroxidation (MDA), hydrogen peroxide and superoxide content in P. nigra leaves under simulated glyphosate drift.


Glyphosate (g a.e. ha-1)


(μmol g-1 FM)


(nmol min-1 g-1 FM)


(nmol g-1 DM)

Membrane damage






11,33 ± 0,92 a

11,95 ± 1,46 a

21,06 ± 2,11 b

29,14 ± 1,79 c

10,84 ± 3,20 a

11,21 ± 2,67 a

32,66 ± 4,19 b

61,17 ± 3,54 c

36,11 ± 3,41 a

34,85 ± 4,93 a

49,13 ± 4,15 b

56,09 ± 3,57 c

32,63 ± 2,21 a

33,01 ± 3,25 a

50,18 ± 1,19 b

65,42 ± 2,13 c

Values represent the means ± SD of six replicates; when labelled with different letters, they are significantly different (Tukey test; P < 0.05).




All the tested doses of glyphosate reduced growth and photosynthesis in P. nigra seedlings (Fig. 1; 2A). The decrease in the photosynthetic rate coincided with a stomatal closure. (Fig. 2B) However, at doses of 400 and 800ga.e. ha-1 glyphosate, the Ci values remained constant (Fig. 2C), and A/Ci decreased (Fig. 2D). These results indicate that at the dose of 200g a.e. ha-1 glyphosate, photosynthesis was inhibited due to stomatal closure and the concomitant decrease in Ci. In contrast, at doses of 400 and 800 g a.e. ha-1 glyphosate, photosynthesis was inhibited by a non-stomatal component.

The behavior of the modulated fluorescence emission variables confirms an inhibition of photosynthesis due to non-stomatal components. Thus, for example, the herbicide produced a decrease in YNPQ values (Fig. 3A). Under adverse conditions, plants activate stress suppression mechanisms such as dissipation of excess energy as heat (YNPQ). This variable is related to the thermal dissipation that occurs through the xanthophyll cycle (Niyogi, Björkman, & Grossman, 1997). Therefore, the decrease in YNPQ values may be due to a decrease in carotenoid concentrations, as it was observed in glyphosate-treated Arachis hypogaea plants (Radwan & Fayez, 2016).

The decrease in YNPQ was accompanied by an increase in YNO (Fig. 3B), which was not sufficient to mitigate the negative effects of the herbicide, expressed in the decrease in the electron transport rate (Fig. 3C). This variable manifested a strong reduction, mainly in the doses of 400 and 800g a.e ha-1 glyphosate, which shows an alteration in the photochemical stage of photosynthesis.

The involvement of the photosystem limits the maintenance of electron transport and decreases the production of ATP and NADPH (Ashraf & Harris, 2013). These products are necessary for the fixation of CO2 in the Calvin cycle; therefore, their deficiency inhibits photosynthesis (Dupraz et al., 2016).

Doses of 400 and 800g a.e. ha-1 glyphosate also reduced Fv/Fm values (Fig. 3D). This response indicates that there was either damage on the reaction center of PSII or limitation in the transfer of excitation energy from the antenna complex to the reaction centers (Yuan et al., 2013).

The impact of glyphosate on photosynthesis differs among woody species. Carvalho, Duke, and da Costa (2018) observed that doses from 18 to 720g a.e. ha-1 glyphosate produced significant decreases in A and gs, in Eucalyptus x urograndis clones GG100 and C219. Similarly, in Eucalyptus urograndis clones CLR383 and CLR384, 86.4 g a.e. ha-1 glyphosate produced a decrease of 27 and 32 % in A with respect to the control, respectively (Santos, Tuffi-Santos, Alfenas, Faria, & Sant’anna-Santos, 2019). In Olea europea, glyphosate did not affect net photosynthesis values, stomatal conductance or chlorophyll a fluorescence emission variables (Cañero et al., 2011). In Salix miyabeana cultivar SX64, glyphosate produced decreased stomatal conductance, YNPQ and Fv/Fm (Gomes et al., 2014).

Photoinhibition, demonstrated by the decrease in Fv/Fm values, may be due to the production of ROS, which damages the reaction center of PSII (Huang, Zhang, & Cao, 2010). Reactive oxygen species are generated in plant cells, even under optimal physiological conditions. However, often under unfavorable conditions, there is an imbalance between the rate of ROS production, and the antioxidant systems of the cell. In these situations, an oxidative stress is produced (Corpas, Barroso, Palma, & Rodríguez-Ruiz, 2017). In agreement with this observation, doses of 400 and 800 g a.e. ha-1 produced significant increases in the concentrations of H2O2, O2.- and malondialdehyde (Table 1). Consequently, the selective permeability of the membranes was altered.

Plant species have different antioxidant, enzymatic and non-enzymatic systems. Therefore, their response to glyphosate varies according to the species considered. Glyphosate inhibited the photosynthesis of Salix miyabeana by producing oxidative stress, with increases in the concentrations of H2O2 and malondialdehyde (Gomes et al., 2014). Zhong, Zhonghua, Jun and Chai (2018) attributed the high sensitivity to glyphosate of Hydrilla verticillata to the oxidative stress generated after exposure to the herbicide. Contrarily, the damage generated by glyphosate in soybean cultivars sensitive to this herbicide was not related to oxidative stress, since the plants showed low concentrations of MDA (Moldes, Medici, Abrahão, Tsai, & Azevedo, 2008).

In conclusion, glyphosate reduces growth and photosynthesis in P. nigra seedlings. The inhibition of photosynthesis is due to stomatal closure and alterations in the photochemical stage. At doses of 400 and 800 g a.e. ha-1, glyphosate produces photoinhibition. The latter effect is associated to membrane damage produced by the accumulation of ROS.




The authors are grateful to the financial support by CICyT – UNSE, Argentina.




The authors declare that they have fully complied with all pertinent ethical and legal requirements, both during the study and in the production of the manuscript; that there are no conflicts of interest of any kind; that all financial sources are fully and clearly stated in the acknowledgments section; and that they fully agree with the final edited version of the article. A signed document has been filed in the journal archives.


The declaration of the contribution of each author to the manuscript is as follows: D.A.M.: Data collection, data analysis and writing of the manuscript. G.I.B.: support in the interpretation of the results, and review of the manuscript.




Alcántara de la Cruz, R., Barro, F., & Domínguez-Valenzuela, J.A., & De Prado, R. (2016). Physiological, morphological and biochemical studies of glyphosate tolerance in Mexican Cologania (Cologania broussonetii (Balb.) DC.). Plant Physiology and Biochemistry, 98, 72-80. DOI: 10.1016/j.plaphy.2015.11.009


Ashraf, M., & Harris, P.J.C. (2013). Photosynthesis under stressful environments: an overview. Photosynthetica, 51(2), 163–190. DOI: 10.1007/s11099-013-0021-6


Bilger, W., Schereiber, U., & Bock, M. (1995). Determination of the quantum efficiency of photosystem II and of non-photochemical quenching of chlorophyll fluorescence in the field. Oecologia, 102(4), 425–432. DOI: 10.1007/bf00341354


Cakmak, I., & Horst, W.J. (1991). Effect of aluminium on lipid peroxidation, superoxide dismutase, catalase, and peroxidase activities in root tips of soybean (Glycine max). Physiologia Plantarum, 83(3), 463–468


Cañero, A.I., Cox, L., Redondo-Gómez, S., Mateos-Naranjo, E., Hermosín, M.C., & Cornejo, J. (2011). Effect of the herbicides terbuthylazine and glyphosate on photosystem II photochemistry of young olive (Olea europaea) plants. Journal of Agricultural and Food Chemistry, 59(10), 5528‐5534. DOI: 10.1021/jf200875u


Carvalho, L.B., Duke, S.O., & da Costa, A.A.P.L. (2018). Physiological responses of Eucalyptus x urograndis to glyphosate are dependent on the genotype. Scientia Forestalis, 46(118), 177-187. DOI: 10.18671/scifor.v46n118.04


Cerqueira, J.V.A., Silviera, J.A.G, Carvalho, F.E.L, Cunha, J.R., & Lima Neto, M.C. (2019). The regulation of P700 is an important photoprotective mechanism to NaCl‐salinity in Jatropha curcas. Physiologia Plantarum, 167(3), 404-417. DOI: 10.1111/ppl.12908


Corpas, F.J., Barroso, J.B., Palma, J.M., & Rodríguez-Ruiz M. (2017). Plant peroxisomes: a nitro-oxidative cocktail. Redox Biology, 11, 535-542. DOI: 10.1016/j.redox.2016.12.033


De María, N., Becerril, J.M., García-Plazaola, J.I., Hernandez, A., de Felipe, M.R., & Fernandez-Pascual, M. (2006). New insights on glyphosate mode of action in nodular metabolism: Role of shikimate accumulation. Journal of Agricultural and Food Chemistry, 54(7), 2621-2628. DOI: 10.1021/jf058166c


Dupraz, V., Coquillé, N., Ménard, D., Sussarellu, R., Haugarreau, L., & Stachowski-Haberkorn, S. (2016). Microalgal sensitivity varies between a diuron-resistant strain and two wild strains when exposed to diuron and irgarol, alone and in mixtures. Chemosphere, 151, 241–252. DOI: 10.1016/j.chemosphere.2016.02.073


Elstner, R., & Heupel, A. (1976). Inhibition of nitrite formation from hydroxylammoniumchloride: a simple assay for superoxide dismutase. Analytical Biochemistry, 70(2), 616–620. DOI: 10.1016/0003-2697(76)90488-7


Felker, P. (2009). Unusual physiological properties of the arid adapted tree legume Prosopis and their applications in developing countries. In De la Barrera, E. & Smith, W.K. (Eds.). Perspectives in Biophysical Plant Ecophysiology: a tribute to Park S. Nobel (pp 221-255). México Universidad Nacional Autónoma de México


Genty, B., Briantais, J.M., & Baker, N.R. (1989). The relationship between the quantum yield of photosynthetic electron transport and quenching of chlorophyll fluorescence. Biochimica et Biophysica Acta, 990(1), 87-92. DOI: 10.1016/S0304-4165(89)80016-9


Giménez, A.M., & Moglia, J.G. (2003). Árboles del Chaco Argentino. Guía para el reconocimiento dendrológico. Argentina: Editorial Facultad de Ciencias Forestales UNSE


Gomes, M.T.G., da Luz, A.C., dos Santos, M.R., Batitucci, M.C.P., Silva, D.M., & Falqueto, A.R. (2012). Drought tolerance of passion fruit plants assessed by the OJIP cholophyll a fluorescence transient. Scientia Horticulturae, 142, 49-56. DOI: 10.1016/j.scienta.2012.04.026

Gomes, M.P., Smedbol, E., Chalifour, A., Hénault-Ethier, L., Labrecque, M., Lepage, L., Lucotte, M., Juneau, P. (2014). Alteration of plant physiology by glyphosate and its by-product aminomethylphosphonic acid: an overview. Journal of Experimental Botany, 65(17), 4691-4703. DOI: 10.1093/jxb/eru269


Huang, W., Zhang, S.B., & Cao, K.F. (2010). Stimulation of cyclic electron flow during recovery after chilling-induced photoinhibition of PSII. Plant and Cell Physiology, 51(11), 1922–1928. DOI: 10.1093/pcp/pcq144


Laisk, A., & Loreto, F. (1996). Determining photosynthetic parameters from leaf CO2 exchange and chlorophyll fluorescence. Plant Physiology, 110(3), 903–911


Meloni, D.A., Silva, D.M., Ledesma, R., & Bolzón, G.I. (2017). Nutrición mineral y fotosíntesis en plántulas de algarrobo blanco, Prosopis alba (Fabaceae) bajo estrés salino. UNED Research Journal, 9(2), 297-304. DOI: 10.22458/urj.v9i2.1903


Meloni, D.A., Targa, M.G., Fraño, A., Ledesma, R., Silva, M.C., & Catán, A. (2019). Glyphosate drift inhibes photosynthesis and produces oxidative stress to Eucalyptus camaldulensis. Revista de Ciencias Forestales Quebracho, 27(1,2), 5-12


Moldes C.A., Medici, L.O., Abrahão, O.S., Tsai, S.M., & Azevedo, R.A. (2008). Biochemical responses of glyphosate resistant and susceptible soybean plants exposed to glyphosate. Acta Physiologiae Plantarum, 30, 469–479. DOI: 10.1007/s11738-008-0144-8


Niyogi, K.K., Björkman, O., & Grossman, A.R. (1997). The roles of specific xanthophylls in photoprotection. Proceedings of the National Academy of Sciences of the United States of America, 94(25), 14162–14167. DOI: 10.1073/pnas.94.25.14162


Olesen, C.F., & Cedergreen, N. (2010). Glyphosate uncoples gas exchange and chlorophyll fluorescence. Pest Management Science, 66(5), 536-542. DOI: 10.1002/ps.1904


Paiva, A.L., Passaia, G., Lobos, A.K.M., Messeder, D.J., Silveira, J.A.G., & Pinheiro, M.M. (2019). Mitochondrial glutathione peroxidase (OsGPX3) has a crucial role in rice protection against salt stress. Environmental and Experimental Botany, 158, 12-21. DOI: 10.1016/j.envexpbot.2018.10.027


Radwan, D.E.M., & Fayez, K.A. (2016). Photosynthesis, antioxidant status and gas-exchange are altered by glyphosate application in peanut leaves. Photosynthetica, 54, 307–316. DOI: 10.1007/s11099-016-0075-3


Santos, S.A., Tuffi-Santos, L.D., Alfenas, A.C., Faria, A.T., & Sant’anna –Santos, B.F. (2019). Differential Tolerance of Clones of Eucalyptus grandis Exposed to Drift of the Herbicides Carfentrazone-Ethyl and Glyphosate. Planta Daninha, 37, e019175977. DOI: 10.1590/s0100-83582019370100024


Serra, A.A., Nuttens, A., Larvor, V., Relault, D., Cou´e, I., Sulmon, C., & Gouesbet, G. (2013). Low environmentally relevant levels of bioactive xenobiotics and associated degradation products cause cryptic perturbations of metabolism and molecular stress responses in Arabidopsis thaliana. Journal of Experimental Botany, 64(10), 2753‐2766. DOI: 10.1093/jxb/ert119


Sousa, C.P., Farías, M.E., Shock, A.A., & Bacarin, M.A. (2014). Photosynthesis of soybean under the action of a photosystem II-inhibiting herbicide. Acta Physiologiae Plantarum, 36, 3051-3062. DOI: 10.1007/s11738-014-1675-9


Tuffi Santos, L.D., Meira, R.M.S.A., Ferreira, F.A., Sant’Anna-Santos, B.F., & Ferreira, L.R. (2007). Morphological responses of different eucalypt clones submitted to glyphosate drift, Environmental and Experimental Botany, 59(1), 1-20. DOI: 10.1016/j.envexpbot.2005.09.010


Vivancos, P.D., Driscoll, S.P., Bulman, C.A., Ying, L., Emami, K., Treumann, A., Mauve, C., Noctor, G., & Foyer, C.H. (2011). Perturbations of amino acid metabolism associated with glyphosate-dependent inhibition of shikimic acid metabolism affect cellular redox homeostasis and alter the abundance of proteins involved in photosynthesis and photorespiration. Plant Physiology, 157(1), 256–268. DOI: 10.1104/pp.111.181024


Yuan, X., Guo, P., Qi, X., Ning, N., Wang, H., Wang, H., Wang, X., & Yang, Y. (2013). Safety of herbicide Sigma Broad on Radix Isatidis (Isatis indigotica Fort.) seedlings and their photosynthetic physiological responses. Pesticide Biochemistry and Physiology, 106(1-2), 45–50. DOI: 10.1016/j.pestbp.2013.04.002.


Zhong, G., Zhonghua, W., Jun, Y., & Chai, L. (2018). Responses of Hydrilla verticillata (L.f.) Royle and Vallisneria natans (Lour.) Hara to glyphosate exposure, Chemosphere,193, 385-393. DOI: 10.1016/j.chemosphere.2017.10.173


Zhou, M., Diwu, Z., Panchuk-Voloshina, N., & Haugland, R.P. (1997). A stable nonfluorescent derivative of resorufin for the fluorometric determination of trace hydrogen peroxide: applications in detecting the activity of phagocyte NADPH oxidase and other oxidases. Analytical Biochemistry, 253(2), 162–168. DOI: 10.1006/abio.1997.2391.


Zushi, K., Kajiwara, S., & Matsuzoe, N. (2012). Chlorophyll a fluorescence OJIP transient as a tool to characterize and evaluate response to heat and chilling stress in tomato leaf and fruit. Scientia Horticulturae, 148, 39-46. DOI: 10.1016/j.scienta.2012.09.022.
